52mm Ball Head with Picatinny and ARCA Adapter

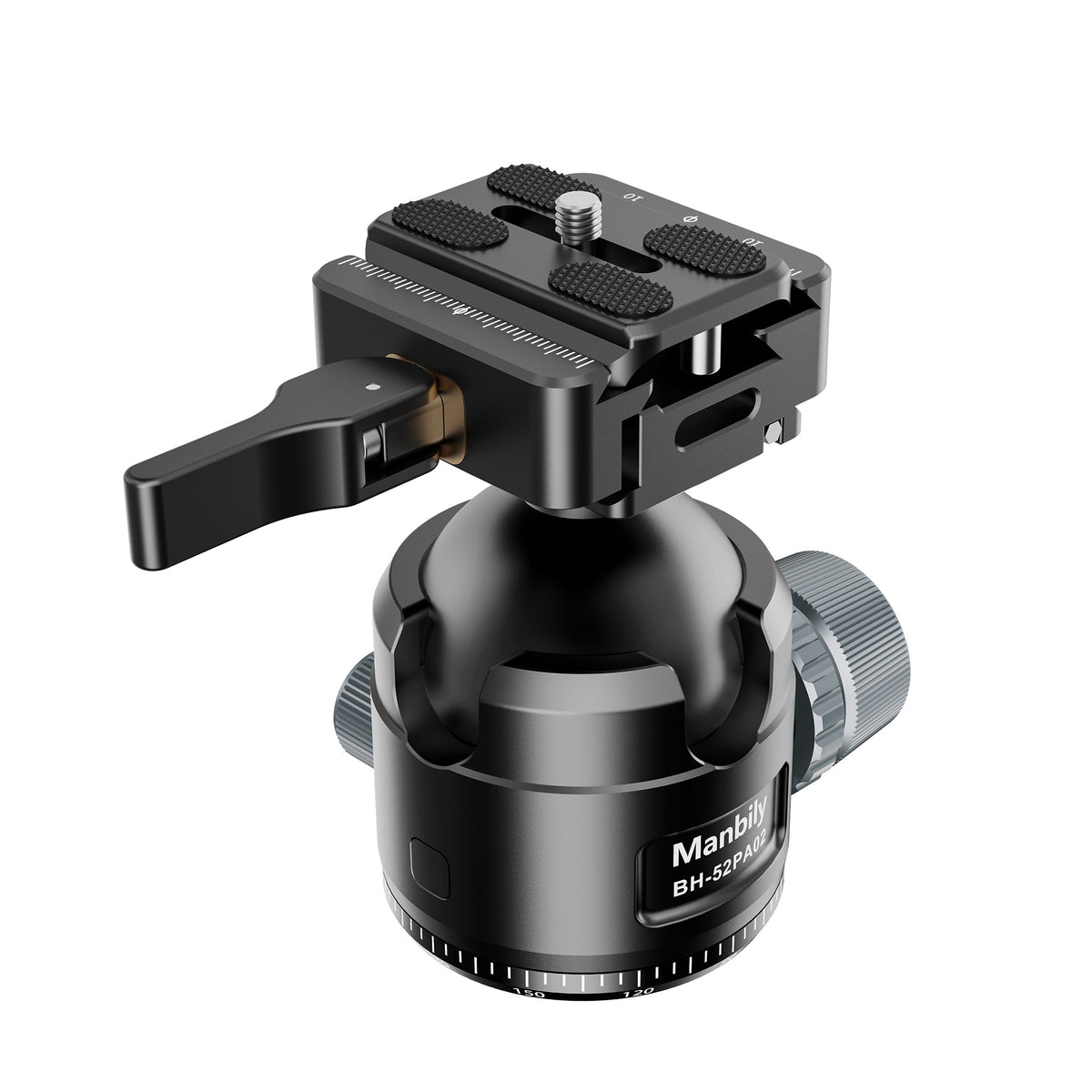

The Manbily BH-52PA02 52mm Ball Head is a heavy-duty mounting solution built to hold a rifle, spotting scope or camera dead still under load. Its oversized 52mm ball carries up to 25kg without creep or sag, giving hunters, precision shooters and photographers a single head that locks down hard and stays where you put it.

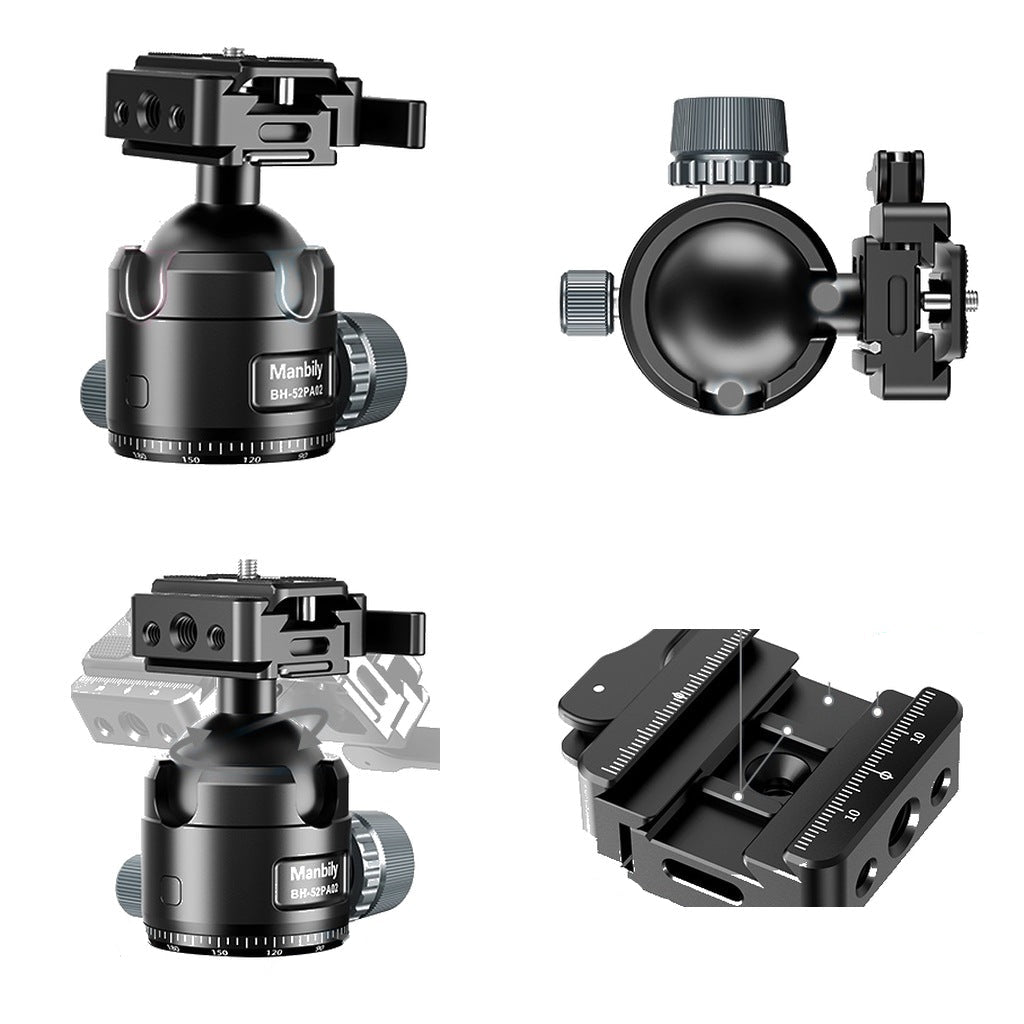

The dual-ring knob gives you two controls in one. The outer ring clamps the ball for a solid lock, while the inner ring dials in fine tension so you can pan and track a moving target smoothly without the head dropping under the weight of the rifle. Dual U-slots allow two separate 90 degree vertical adjustments for steep uphill and downhill angles, and the base pans a full 360 degrees with an engraved scale for repeatable positioning.

The top plate is Picatinny and ARCA rail compatible paired with a 60mm x 38mm quick release plate, so the same head runs a Picatinny-railed rifle or an ARCA-plated camera body with no change of hardware. The base is a standard 3/8" thread and ships with two 3/8" to 1/4" conversion screws, fitting virtually any tripod, monopod or shooting stick.

Machined from thick CNC aluminium with a matte black anodized finish, a black oxide stainless steel bolt and internal rubber pads that grip the ball without marking it, the BH-52PA02 is built for range days, walk and stalk hunts and long glassing sessions off a tripod.

Product Specifications:

• Ball diameter: 52mm
• Maximum load: 25kg (55lbs)
• Pan: 360 degrees with engraved scale
• Dual 90 degree vertical U-slots
• Clamp type: Picatinny and ARCA rail compatible
• Quick release plate: 60mm x 38mm
• Base thread: 3/8", includes two 3/8" to 1/4" conversion screws
• Material: CNC machined aluminium, matte black anodized
• Dual-ring knob: outer lock, inner fine-tension
• Internal rubber pads
• Includes Allen key and manual
